Hemodialysis blood tubing set
Whatsapp: 0086-18969899112
E-mail: dtech@dtech-intl.com

Features:
1. Medical grade raw materials,good biocompatibility;
2. Flexible and kink-resistant tubes;
3. Pump segment with excellent anti-fatigue performance guarantees constant flow rate;
4. Luer connectors conforming to ISO 594 standard;
5. 100% leak test;
6. Various series, good applicability;
7. OEM and ODM services can be provided.

Application:
The device acts as an extracorporeal blood channel during blood purification treatment


Remarks:

1. The product is mainly composed of arterial line and venous line. Priming spike, IV set, drainage bag,
    transducer protectors and other accessories can be added according to the needs of clinical use;
2. Individual and customized services are available (produce according to the demands of customer and
    clinical use);
3. The device is packed with paper-film blister bag.
    PE bag and other forms of packages can be provided according to the customer's request.
4. Sterilization Method: Ethylene Oxide Gas;
5. Packing: 24 sets/Carton;
6. Shelf life: 36 months;

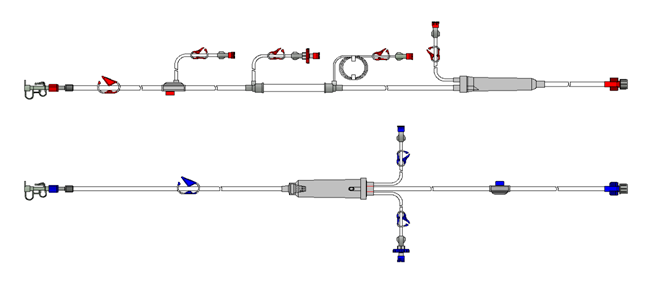

Hemodialysis blood tubing set- --DT-BL-001


Applicable Machine: Baxter, Toray, JMS, Bellco, Kawasumi, Fresenius
Pump segment dimension ( ID x OD x L):  Ф8 х Ф12 х З50
Drip chamber (OD):  Arterial-Ф20 mm    Venous- Ф20 mm
Total volume of blood pathway: 140ml

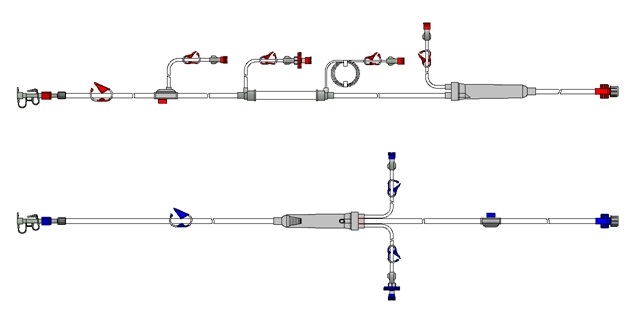

Hemodialysis blood tubing set- --DT-BL-003



Applicable Machine: Gambro, Fresenius, Nikkiso, Toray, B.Braun, Nipro, Bellco
Pump segment dimension ( ID x OD x L) : Ф8 х Ф12 х 350
Drip chamber (OD):  Arterial-Ф22 mm   Venous- Ф22 mm
Total volume of blood pathway: 150ml

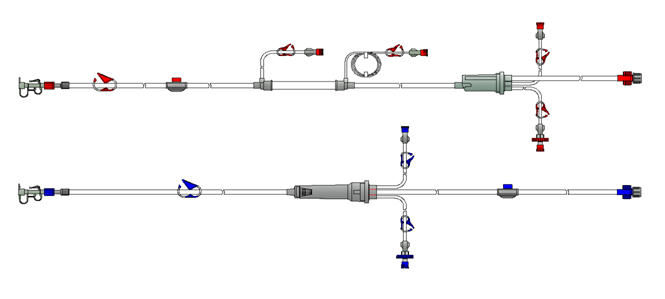

Hemodialysis blood tubing set- --DT-BL-005

Applicable Machine: Gambro, Fresenius, Nikkiso, Toray, B.Braun, Nipro, Bellco
Pump segment dimension ( ID x OD x L): Ф8 хФ12х350
Drip chamber (OD):  Arterial-Ф22 mm   Venous- Ф22 mm
Total volume of blood pathway: 150ml

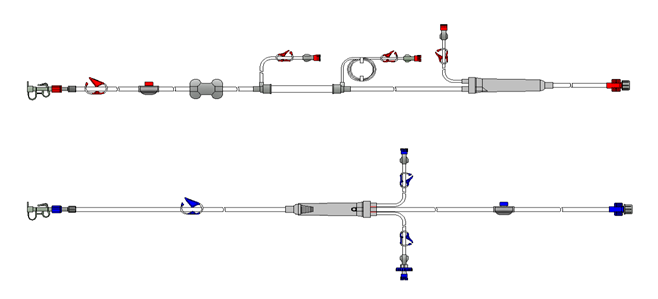

Hemodialysis blood tubing set- --DT-BL-006


Applicable Machine: Gambro, Fresenius, Nikkiso, Toray, B.Braun, Nipro, Bellco
Pump segment dimension ( ID x OD x L): Ф8 х Ф12 х 350
Drip chamber (OD):  Arterial-Ф22 mm   Venous- Ф22 mm
Total volume of blood pathway: 150ml

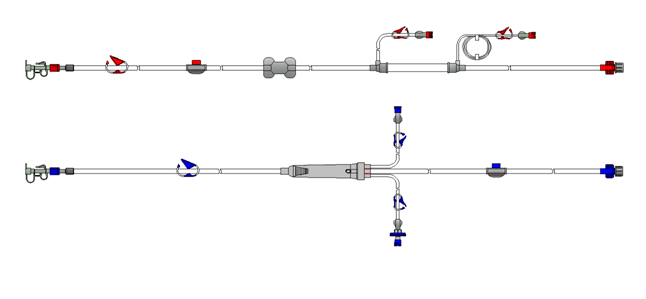

Hemodialysis blood tubing set- --DT-BL-007



Applicable Machine: Kawasumi
Pump segment dimension ( ID x OD x L): Ф8 х Ф12 х 350
Drip chamber (OD):  Arterial-Ф22 mm   Venous- Ф22 mm
Total volume of blood pathway: 120ml

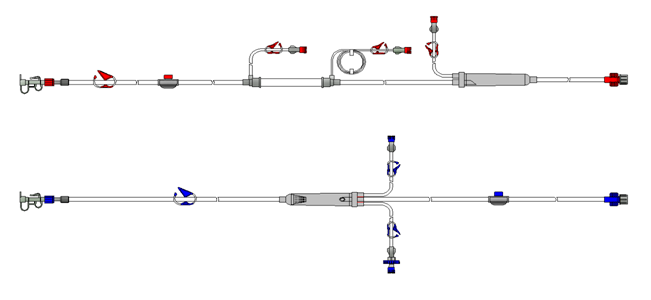

Hemodialysis blood tubing set- --DT-BL-008

Applicable Machine: Fresenius (big drip chamber)
Pump segment dimension ( ID x OD x L): Ф8 х Ф12 х 350
Drip chamber (OD):  Arterial-Ф22 mm   Venous- Ф30 mm
Total volume of blood pathway: 150ml




Hemodialysis blood tubing set- --DT-BL-011


Applicable Machine: Fresenius
Pump segment dimension ( ID x OD x L): Ф8 х Ф12 х 350
Drip chamber (OD):  Arterial-Ф22 mm   Venous- Ф22/30 mm
Total volume of blood pathway: 155ml




Hemodialysis blood tubing set- --DT-BL-012


Applicable Machine: B.Braun
Pump segment dimension ( ID x OD x L): Ф6.3 х Ф9.8 х 350
Drip chamber (OD):  Arterial-Ф22 mm   Venous- Ф22mm
Total volume of blood pathway: 140ml
